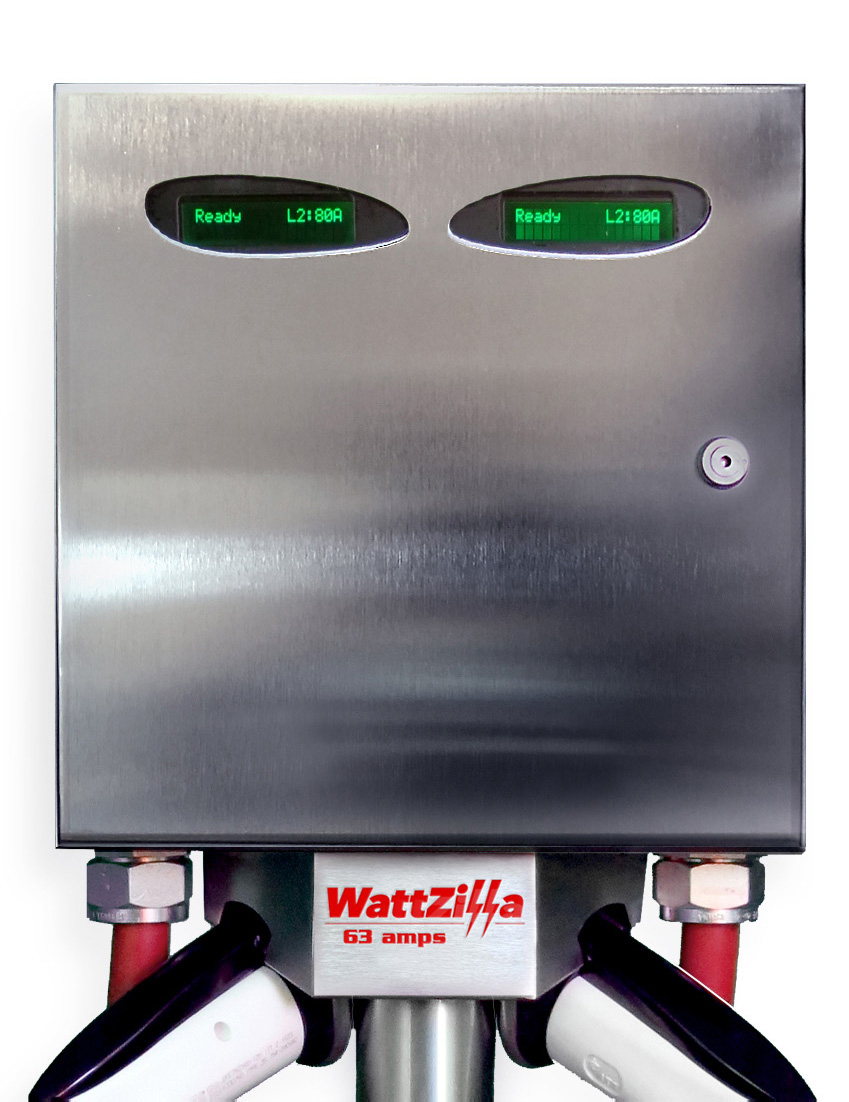

WattZilla® Euro-DUO: Dual 63-AMP Charger

Available in Single Phase and Three Phase models

The WattZilla® Euro-DUO is the world’s first dual 63AMP electric vehicle charging station capable of charging as much as 63AMPS, single or three three phase power to two electric vehicles simultaneously. Housed in a beautiful, weather-proof IP66 stainless steel enclosure, the Euro-DUO can be wall or pole mounted for indoor or outdoor use.

The dual multi-color LCDs displays present real-time information such as the amount of amps delivered to the vehicles and how long each has been charging.

The WattZilla® Euro-DUO comes with two industry standard Mennekes VDE-AR-E 2623-2-2 couplers with the ability to provide a full 63AMPS, single or three phase charging power (unlike most chargers sold today which only provide 30AMPS or less) that allows you to charge two vehicles fast and fully at the same time.* The coupler works with electric vehicles sold in IEC countries.**

Single Phase EURO-DUO Dual 63-AMP Charger: From €3,495.00

Three Phase EURO-DUO Dual 63-AMP Charger: From €5,250.00

Contact us to order

Features

  • Easy to install – your electrician can install anywhere.
  • Interior or exterior use.
  • Attractive IP66 stainless steel enclosure.
  • Two easy to read multi-color LCD displays indicate charging status.
  • Two coiled cords stretch to 25 feet, then quickly retract for quick, user-friendly storage without winding. Straight black cable option available at no extra cost.
  • Cable management system included.
  • Minimal stand-by power consumption (no on/off switch required).
  • Available with specially designed cable management system to securely hold Mennekes VDE-AR-E 2623-2-2 couplers when not in use.
  • Available in wall mounted or exterior pole mounted styles.
  • Certification to the EIEC 61851 standard is pending.
  • Available in two finishes: brushed or mirror.
  • Need something unique? Custom options available. Contact us.
  • 39-month standard warranty. Extended warranty available.

Specifications, Single Phase model

  • Charging Amperage: 63-AMP, 1Ø
  • INPUT: 220VAC, 63 AMPS
  • OUTPUT: 220VAC, 63 AMPS
  • Short Circuit Rating: 5000 RMS Symmetrical AMPS at 220 VAC
  • Temperature Rating: -35°C to +60°C
  • Coupler: 8m cables, 2 Mennekes VDE-AR-E 2623-2-2 Couplers*
  • Dimensions: 300 x 300 x 125 mm (not including mounting)
  • Enclosure: IP66 Stainless Steel Rain-tight Enclosure
  • Display: LCD, Multi-Color (2)
  • Installation requirements: 220VAC at 63-AMPS, requires two independent, 63AMP, 1Ø 30ma RCBO type circuit breakers. Consult your electrician about local requirements.

Specifications, Three Phase model

  • Charging Amperage: 63-AMP, 3Ø
  • INPUT: 380-415 VAC, 63-AMPS per phase
  • OUTPUT: 380-415 VAC, 63-AMPS per phase
  • Short Circuit Rating: 5000 RMS Symmetrical AMPS at 415 VAC
  • Temperature Rating: -35°C to +60°C
  • Coupler: 8m cables, 2 Mennekes VDE-AR-E 2623-2-2 Couplers*
  • Dimensions: 300 x 300 x 125 mm (not including mounting)
  • Enclosure: IP66 Stainless Steel Rain-tight Enclosure
  • Display: LCD, Multi-Color (2)
  • Installation requirements: 380-415 VAC at 63AMPS, requires two independent, 63AMP, 3Ø 30ma RCBO type circuit breakers. Consult your electrician about local requirements.

For more information:

If you would like to speak to a WattZilla® representative who can answer questions regarding purchasing, installation or customization, contact info@WattZilla.com. We look forward to assisting you.

* Charge time dependent on your vehicle's ability to accept higher power charge rates.
** Some vehicles require special adapters. Consult your vehicle’s user manual for more information and check local standards.
