WattZilla® UNO: 80-AMP Charger
The UNO was designed to be the LAST charger you will ever need.
- 4X Stainless steel enclosure protects from rain, snow, water under pressure, dirt, pests, rust and chemical corrosion
- All proprietary circuit boards are gold plated for the ultimate in corrosion resistance
- Coiled power cord is custom fabricated to minimize damage, wear, dirt and accidental trips and falls
- Scratch resistant display

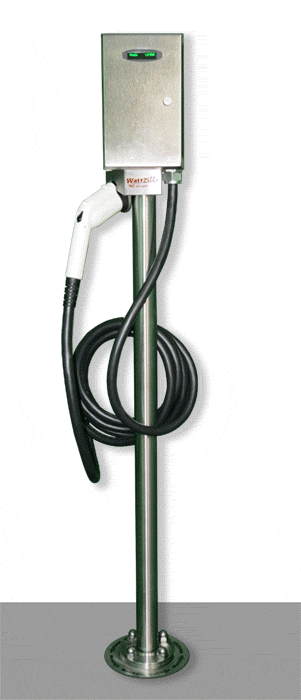

Introducing the WattZilla® UNO, a single vehicle charging station capable of providing as much as 80 AMPS of power (based on your vehicle's requirements). Housed in a beautiful, weather-proof 4X stainless steel enclosure, the UNO can be wall or pole mounted for interior or exterior use.
The multi-color LCD display presents real-time information such as the amount of amps delivered to the vehicle, how long it's been charging, and other useful status messages.
The WattZilla® UNO comes with an industry standard J1772 coupler with the ability to provide a full 80 AMPS of charging power (unlike most chargers sold today which only provide 30 AMPS or less) that allows you to charge fast and fully.* The coupler works with all electric vehicles sold in the US or Canada.** An optional cable management system holds the couplers securely when not in use.
Enjoy safe, reliable charging with the WattZilla® UNO. Ideal for high-end homes, hotels, theaters, public accommodations offices, shopping centers and entertainment venues!
WattZilla® UNO 80-AMP Charger: From $2,195.00
Features
- Easy to install – your electrician can install anywhere.
- Interior or exterior use.
Attractive 4X UL-rated stainless steel enclosure.- Easy to read multi-color LCD display indicates charging status.
- Coiled cable stretches to 25 feet, then quickly retracts for quick, user-friendly storage without winding. Straight black cable option available at no extra cost.
- Minimal stand-by power consumption (no on/off switch required).
- Available with specially designed cable management system to securely hold J1772 couplers when not in use.
- Available in wall mounted or exterior pole mounted styles.
Energy Star certified.- Door available in two finishes: brushed or mirror.
- Need something unique? Custom options available. Contact us.
- 39-month standard warranty. Extended warranty available.
Specifications
- Charging Amperage: Up to 80-AMP
- 100A protected Branch Circuit
- INPUT: 208-240 VAC 50/60 Hz • 80-AMP Continuous
- OUTPUT: 208-240 VAC 50/60 Hz • 80-AMP Continuous
- Short Circuit Rating: 5000 RMS Symmetrical AMPS at 240 VAC
- Temperature Rating: -35°C to +60°C
- Installation: Consult your electrician about local requirements.
- Coupler: SAE J1772 Compliant
- Dimensions: 7.25 x 12 x 5 in (not including mounting)
- Enclosure: Type 4X Stainless Steel Rain-tight Enclosure
- Display: LCD, Multi-Color
- Certification: UL-listed, File# E473741
- Installation Requirements: 208-240 VAC at 50/60 Hz, single phase, requires an independent, 100 AMP breakered supply circuit. Consult your electrician about local requirements.
For more information:
If you would like to speak to a WattZilla® representative who can answer questions regarding purchasing, installation or customization, contact info@WattZilla.com. We look forward to assisting you.
* Charge time dependent on your vehicle's ability to accept higher power charge rates.
** Some vehicles require special adapters. Consult your vehicle's user manual for more information. Tesla includes a J1772 adapter with every vehicle.
